Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Short Description:

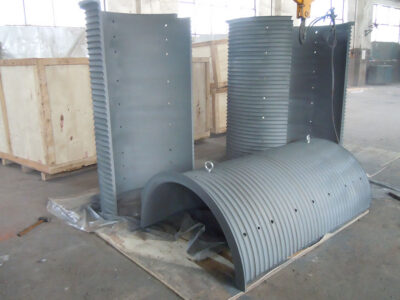

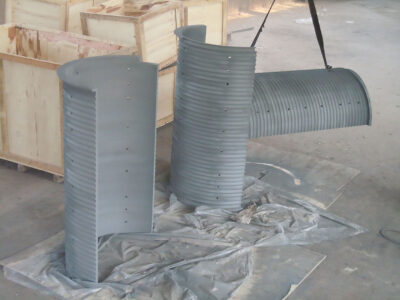

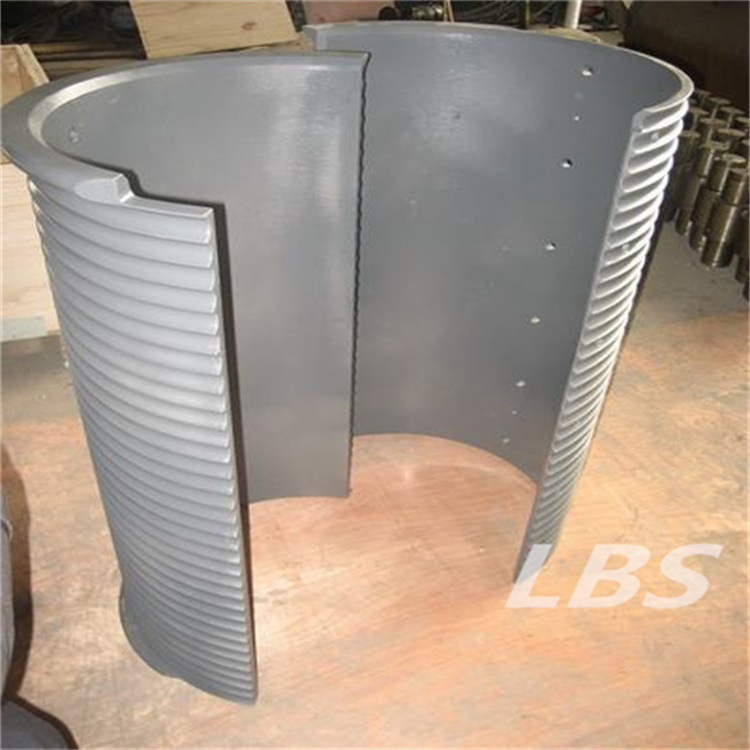

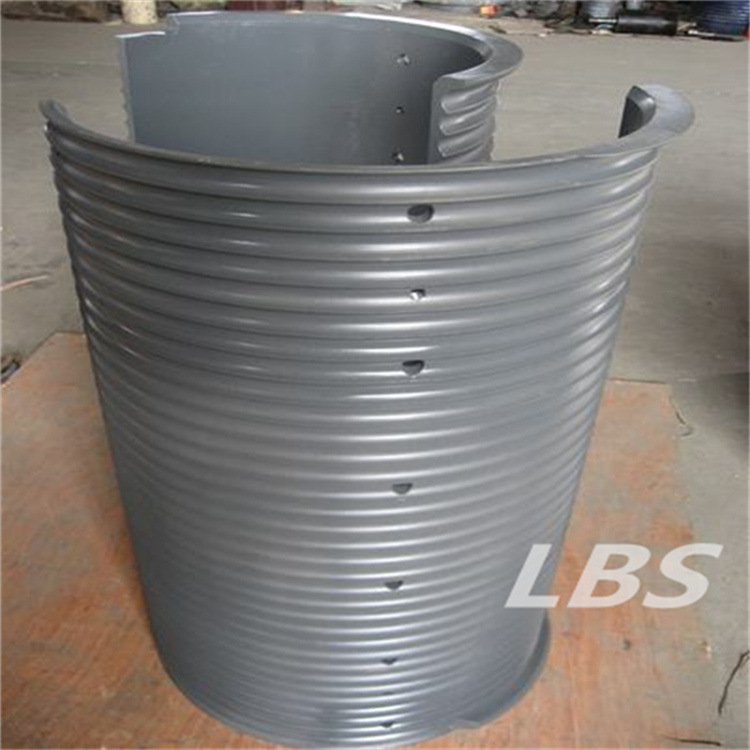

Split LBS rope groove drum skin:
Process the smooth drum into an LBS rope groove structure, and then divide it into two pieces, each consisting of inclined rope grooves and parallel rope grooves. It can be installed on drums with smooth or spiral grooves.
Split LBS rope groove leather: This is an effective and economical solution. If different types and sizes of ropes or damaged drums need to be replaced in the future, you can only replace them with new LBS rope groove leather instead of replacing or repairing the entire drum assembly, saving costs for customers.
Integrated LBS rope groove drum:
A drum directly inserted into a groove (with or without bolts or welded flanges as needed). Directly machine the LBS rope groove on the drum.

FOB Price:US $0.5 – 9,999 / Piece
Min.Order Quantity:100 Piece/Pieces
Supply Ability:10000 Piece/Pieces per Month

Description

Products Description

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Profile

Split LBS rope groove drum skin: Process a smooth drum into a LBS rope groove structure, and then divide it into two pieces, each consisting of a section consisting of inclined rope grooves and parallel grooves. It can be installed on drums with smooth grooves or spiral grooves.

Split LBS rope groove leather: It is an effective and economical solution. If it is necessary to replace different types and sizes of ropes or damaged drums in the future, you can only replace the new LBS rope groove leather instead of replacing or repairing the entire drum component, saving costs for customers.

Integrated LBS rope groove drum: A drum with grooves directly inserted into it (with or without bolts or welding flanges as required). Process the LBS rope groove directly on the drum.

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Advantages

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

In recent years, our products have been widely used in the fields of offshore platform cranes, oil workover drilling winches, logging rope winding equipment, wall wiping machine winches, helicopter motor winches, and so on. With its high reputation, high-quality products and service system, it has received widespread praise from domestic and foreign customers.

Technical Parameters

Product Basic Parameters(Specific specifications can be customized according to requirements):
Product Name	Grooved Sleeves	Type Specification	LBSS-202309001
Brand	LBS	Producing Area	Shijiazhuang, Hebei, China
Production Facility	CNC Center	Certification	ISO9001
Function	Lifting and discharging of steel wire ropes	Quality Assurance	1 year
Color	Customized	MOQ	1 pcs
Material	Alloy steel(Customized)	Processing Method	Machining operation
Rope Groove Type	Lebus	Rope Capacity	10-10000m
Rope Type	3-100mm	Power Source	Electric motor/Hydraulic motor
Rope Entry Direction	Left or right	Accessory Products	Lifting structure
Applicable Equipment	Winch drum, smooth drum	Weight	200kg
Specific specifications can be discussed. Welcome to the news consultation!

Application

The LBS series Grooved Sleeve is widely used in a variety of construction and engineering projects. These include water conservancy projects, forestry, mines, wharves, and more. It can be used effectively for material lifting or flat dragging. Additionally, it can be used as a auxiliary equipment for certain kinds of modern automated operations.

The LBS series Grooved Sleeve is driven by a gear reducer, which provides an efficient and reliable means of powering material hoists. As such, it is suitable for many different applications, such as civil construction and the installation of projects from construction and mining companies, and even factories.

Number	Rope Diameter(mm)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)	Application
1	13	Left	430	763	Oil Workover Rig And Oil Truck Drum
2	18	Left	623	1144	Oil Workover Rig And Oil Truck Drum
3	22 26	Left or Right	730	1120	Drilling Rig
4	18 22 32	Left or Right	670	1240	Windlass
5	28 32 36	Left or Right	560	630	Construction Machinery Rotary Drilling Rigs And Cranes
6	26 45	Left or Right	760 1146	1970 1765	Ocean Cranes, Docks
…

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Support and Services

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Products Technical Support and Service

We understand how important it is for our customers to have reliable technical support and service for their products. We are here to provide the best possible assistance when it comes to any questions or issues you may have. Our experienced team of experts is available to help you find the best solution for your needs. We offer a variety of technical support options, ranging from troubleshooting and installation to product advice and maintenance. Our technical support team is available 24 hours a day, 7 days a week to answer any questions you may have. In addition to our technical support services, we also provide a wide range of services to keep your products running efficiently and effectively. These services include regular maintenance, repair, and replacement. We can also provide assistance with customization and upgrades if necessary. We strive to provide the best possible technical support and service for our customers. We are committed to keeping your products running smoothly and efficiently. If you have any questions or issues, please do not hesitate to contact us. Our team of experts is here to help.

Processing Technic

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin

Packing and Shipping

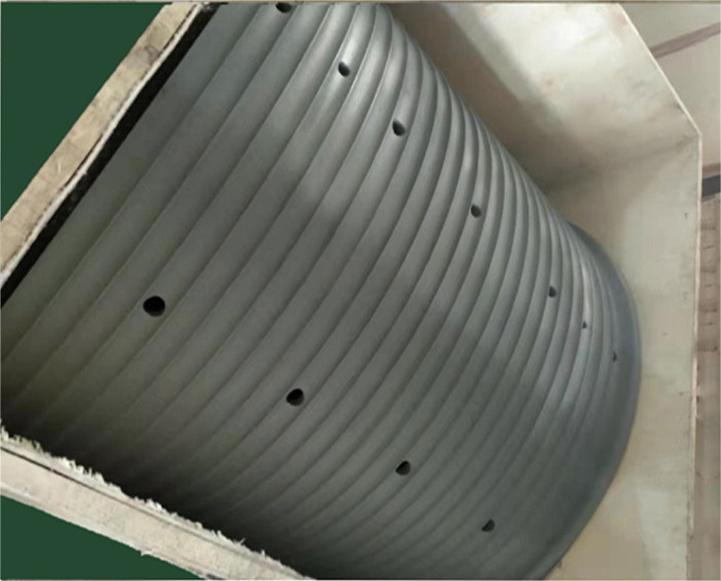

1.Each product is packed in a strong wooden boxes or pallets. 2.The box is labelled with the product details, such as the model number, and other relevant information. 3.We use reliable shipping providers to ensure that our Grooved Drum Sleeves reach their destination safely and on time.

Tips

Non Standard Design Of Split LBS Rope Groove Plate Drum Skin
